Electric Hoist

Home ➤ Products ➤ Endo Products ➤ Electric Hoist

ETC Series

ETC Series

ETC Series

ETC

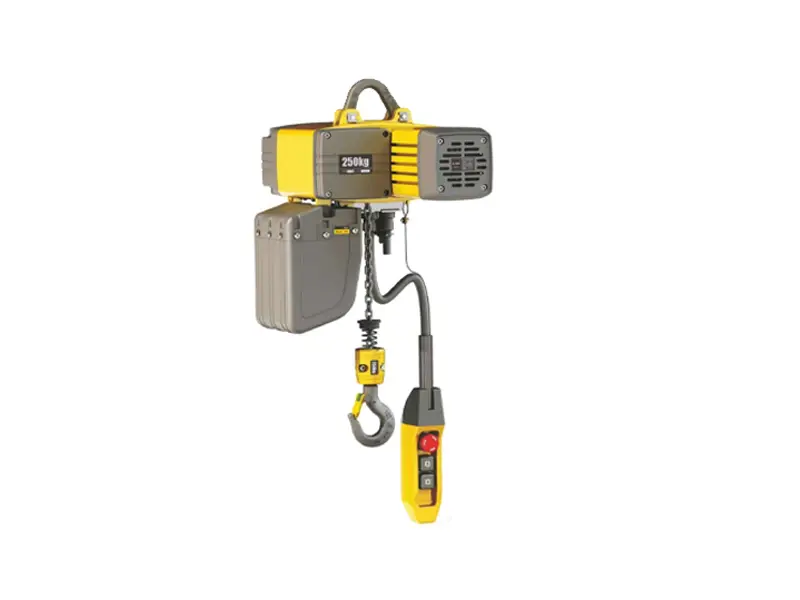

  • The ETC electric chain hoist aims to be lighter, safer, more convenient, and more durable in its operation. The design and manufacture of the hoist strictly adhere to FEM European material handling standards and DIN German industrial standards, striving to optimize each component. Every detail, from control to mechanical design, undergoes rigorous European standard testing, showcasing the product's superiority.
MODEL CAPACITY TEST LOAD (kg) PROTECTION (kg) WORKING GRADE FEM/ISO LIFTING SPEED (m/min) LIFTING POWER (kW) CHAIN SIZE (mm) NO. OF. CHAIN NET WEIGHT (kg)
ETC1-03M5P1 250 313 IP55 2m/MC 8/2 0.4/0.1 04x12 1 23
ETC1-05M5P2 500 625 iP55 2m/M5 4/1 0.4/0.1 o.4x12 2 26
ETC2-05M5P1 500 625 IP55 2rrdM5 8/2 0.8/0.2 4t5x15 1 32
ETC2-10M5P2 1000 12S0 IPS5 2nVMS 4/1 0.8/0.2 oSx15 2 38
ETC3-10M$P1 1000 12SO 1PSS 2m/MS 8/2 1.6/0.4 a7.1x21 1 49
ETC3-20MSP2 2000 2500 IP55 2m/MC 4/1 1.6/0.4 e7.1x21 2 59
  • *The power supply voltage of this product is 380v-415v / 50Hz /3P and the control voltage is 24v in addition to the table if you need to change please call us
MODEL CAPACITY (kg) H min A B C D E G I J K
ETC1-03MSP1 250 420 114 t23 211 228 18 20 293 444 23
ETC1-05M5P2 500 490 128 109 211 228 18 22 293 447 27
ETC2-05M5P1 500 465 181 162 231 204 18 22 343 530 27
ETC2-10M5P2 1000 587 134 146 231 204 20 25 343 543 31
ETC3-10MSP1 1000 540 128 187 264 245 20 35 405 574 31
ETC3-20MSP2 2000 690 150 165 264 24S 26 42 405 596 38
