Motorized Type

Semi-Automatic Torque Wrench Overview

  • Semi-Automatic Operation: Combines air motor and torque wrench for fast provisional and precise final tightening in one tool.
  • Efficiency: Replaces the conventional two-step process, enhancing efficiency.
  • Adjustable Torque: Easily change settings with a hex key on the handle scale.
  • Trigger Mechanism: Index finger trigger engages motor for provisional tightening, followed by manual force until the wrench clicks at the required torque.
  • Enhanced Features: Larger motor, higher provisional torque, and improved trigger mechanism compared to the A Series.
  • Calibration: Easy calibration on standard torque testers like Tohnichi’s DOTE4-G.
  • New Ratchet Drive: Accommodates anti-vibration sockets and does not require a reaction arm for up to 180Nm.
  • Pressure Stability: Torque is unaffected by drops in airline pressure.
  • LS Version: Includes a limit switch for error-proofing with the CNA-4mk3 count checker, ensuring no missed fasteners.

A/AC

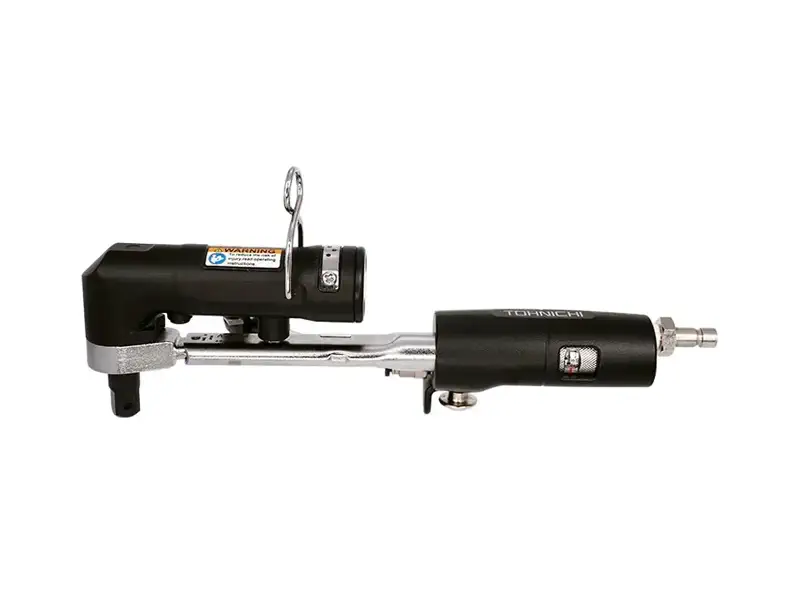

A10N4

Specifications
Model A10N
Torque Range (Min - Max) 03-10 nm
Torque Range (Grade) 0.1 knm
Max.Provisional Tightening Torque 1.8 Nm
Free Speed 750 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 5 mm
Overall Length 277 mm
Square Drive 9.5 mm
Weight 1.0 kg

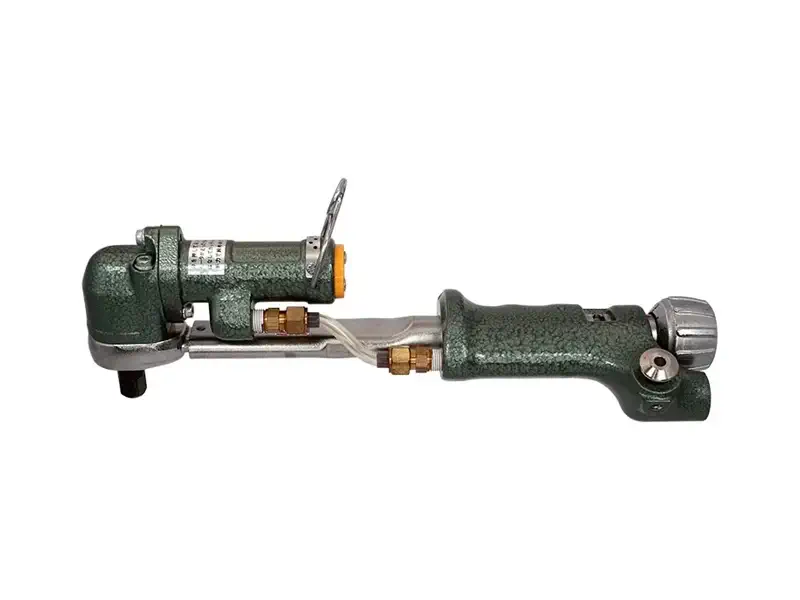

A25N

Specifications
Model A25N
Torque Range (Min - Max) 05-25 nm
Torque Range (Grade) 0.25 knm
Max.Provisional Tightening Torque 1.8 Nm
Free Speed 750 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 5 mm
Overall Length 277 mm
Square Drive 9.5 mm
Weight 1.0 kg

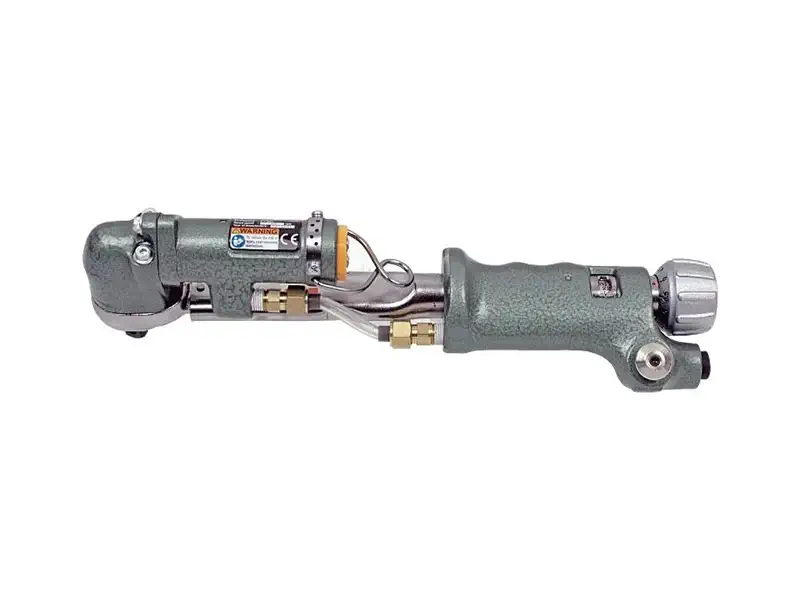

A50N

Specifications
Model A50N
Torque Range (Min - Max) 10-50 nm
Torque Range (Grade) 0.5 knm
Max.Provisional Tightening Torque 1.8 Nm
Free Speed 750 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 5 mm
Overall Length 277 mm
Square Drive 9.5 mm
Weight 1.0 kg

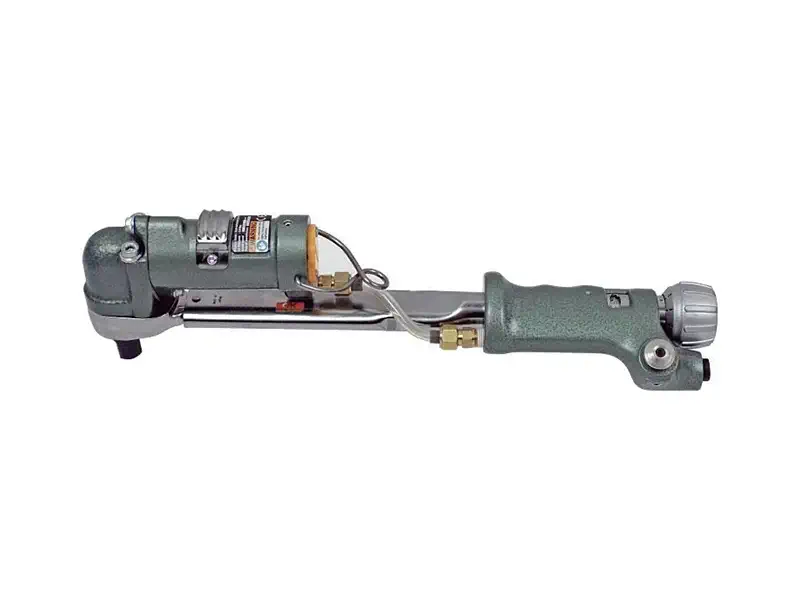

A100N

Specifications
Model A100N
Torque Range (Min - Max) 20-100 nm
Torque Range (Grade) 1 knm
Max.Provisional Tightening Torque 2.5 Nm
Free Speed 800 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 6 mm
Overall Length 338 mm
Square Drive 12.7 mm
Weight 1.5 kg

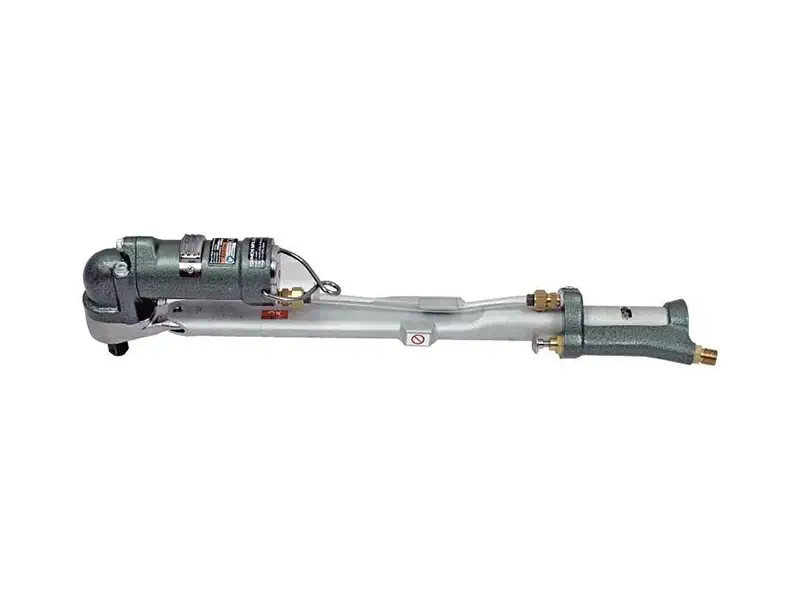

A180N

Specifications
Model A180N
Torque Range (Min - Max) 40-180 nm
Torque Range (Grade) 2 knm
Max.Provisional Tightening Torque 5 Nm
Free Speed 800 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 6 mm
Overall Length 487 mm
Square Drive 12.7 mm
Weight 2.6 kg

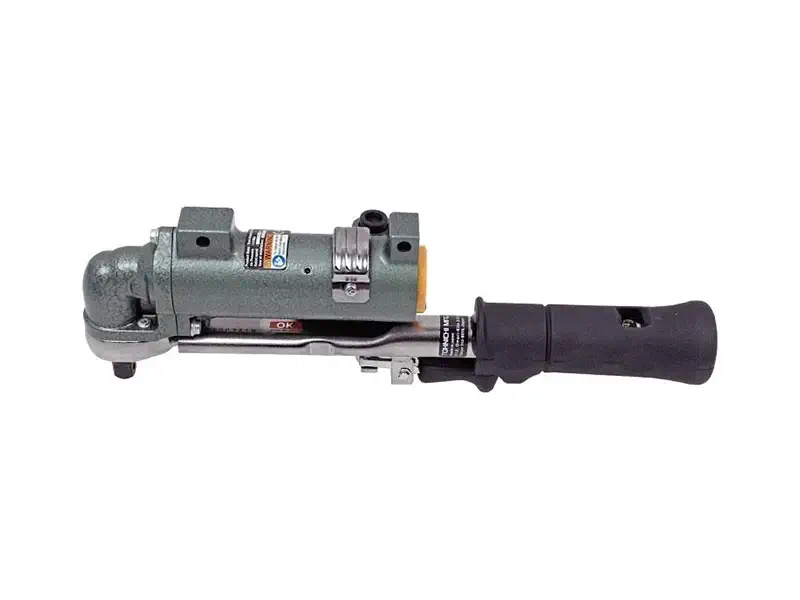

AC25N

Specifications
Model AC25N
Torque Range (Min - Max) 05-25 nm
Torque Range (Grade) 0.25 knm
Max.Provisional Tightening Torque 11 Nm
Free Speed 1000 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 5 mm
Overall Length 293 mm
Square Drive 9.5 mm
Weight 1.5 kg

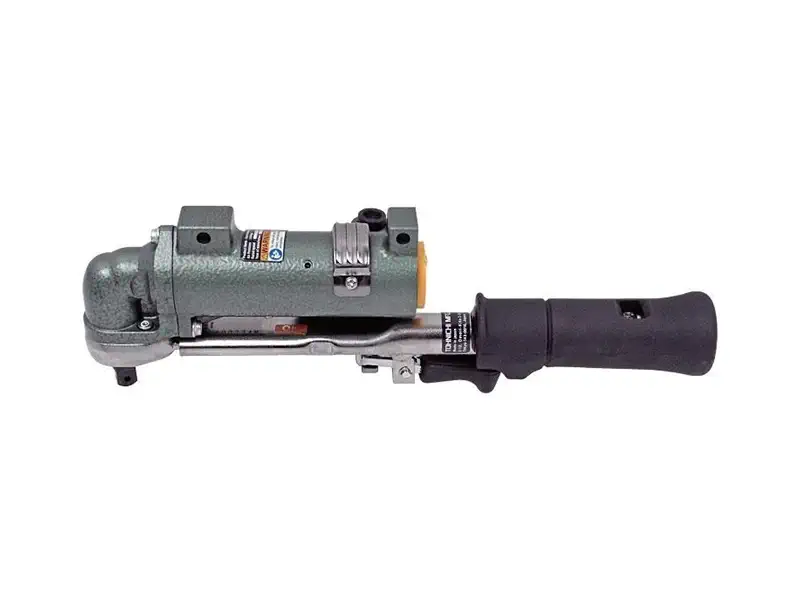

AC50N

Specifications
Model AC50N
Torque Range (Min - Max) 10-50 nm
Torque Range (Grade) 0.5 knm
Max.Provisional Tightening Torque 11 Nm
Free Speed 1000 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 5 mm
Overall Length 293 mm
Square Drive 9.5 mm
Weight 1.5 kg

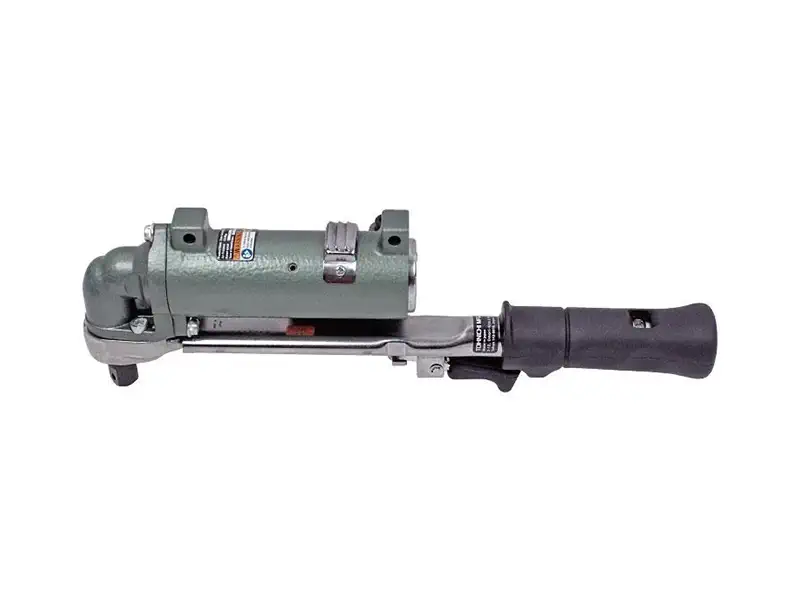

AC100N

Specifications
Model AC100N
Torque Range (Min - Max) 20-100 nm
Torque Range (Grade) 1 knm
Max.Provisional Tightening Torque 17.5 Nm
Free Speed 900 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 6 mm
Overall Length 334 mm
Square Drive 12.7 mm
Weight 2 kg

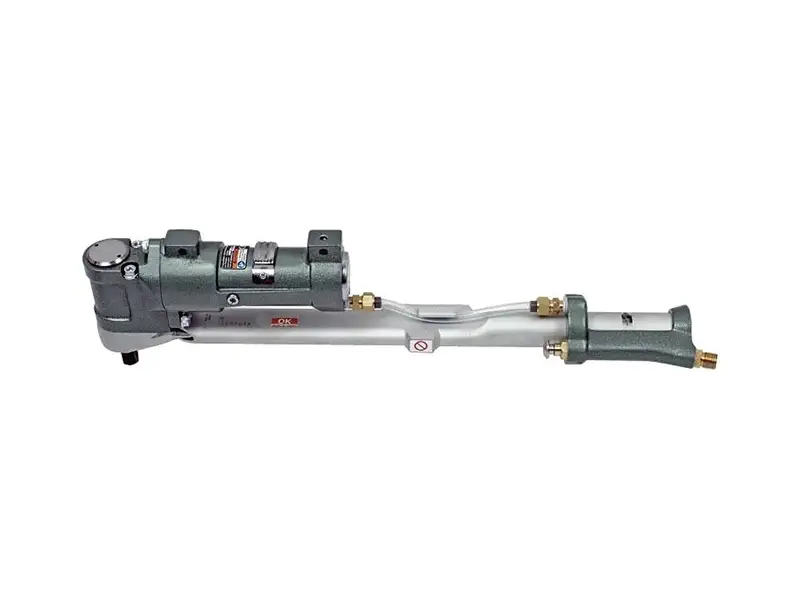

AC180N

Specifications
Model AC180N
Torque Range (Min - Max) 40-180 nm
Torque Range (Grade) 2 knm
Max.Provisional Tightening Torque 19 Nm
Free Speed 800 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 6 mm
Overall Length 489 mm
Square Drive 12.7 mm
Weight 3.3 kg

ALS / ACLS

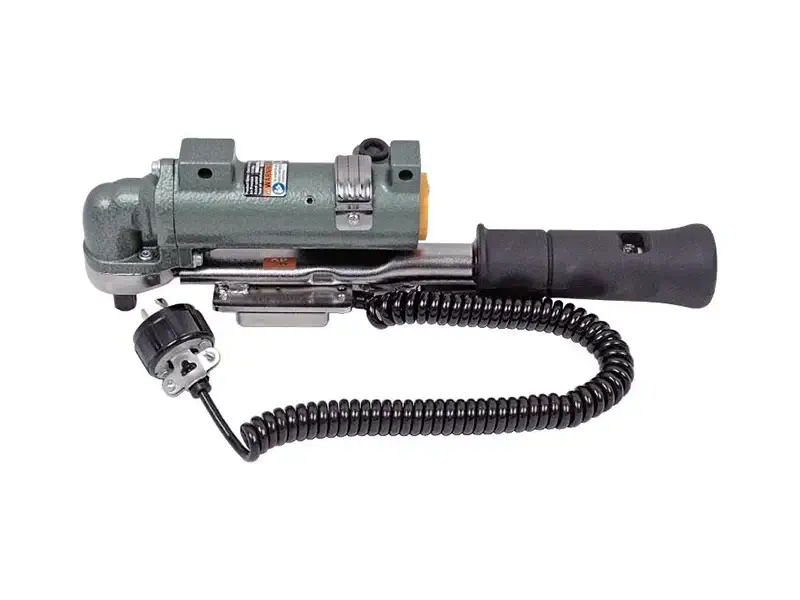

ACLS25N3

Specifications
Model ACLS25N3
Torque Range (Min - Max) 05-25 nm
Torque Range (Grade) 0.25 knm
Max.Provisional Tightening Torque 11 Nm
Free Speed 1000 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 5 mm
Overall Length 293 mm
Square Drive 9.5 mm
Weight 1.5 kg

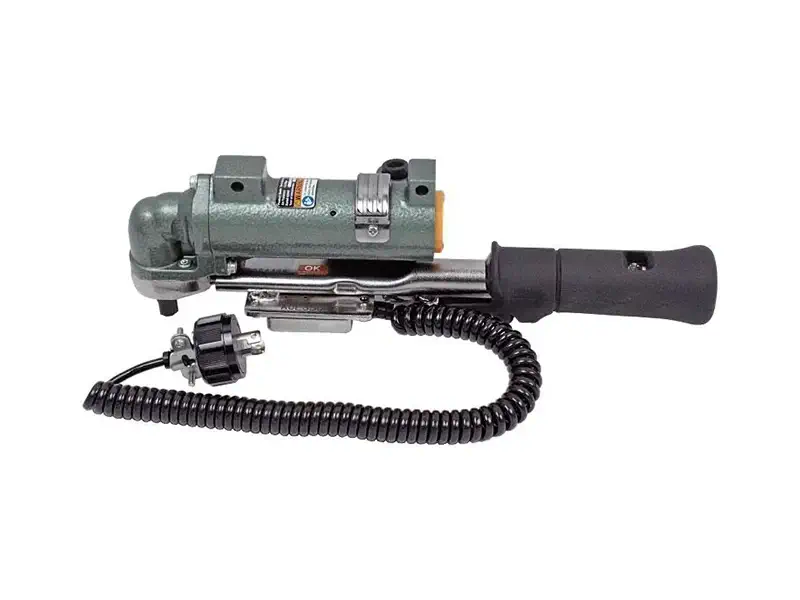

ACLS50N3

Specifications
Model ACLS50N3
Torque Range (Min - Max) 10-50 nm
Torque Range (Grade) 0.5 knm
Max.Provisional Tightening Torque 1.8 Nm
Free Speed 750 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 5 mm
Overall Length 277 mm
Square Drive 9.5 mm
Weight 1.2 kg

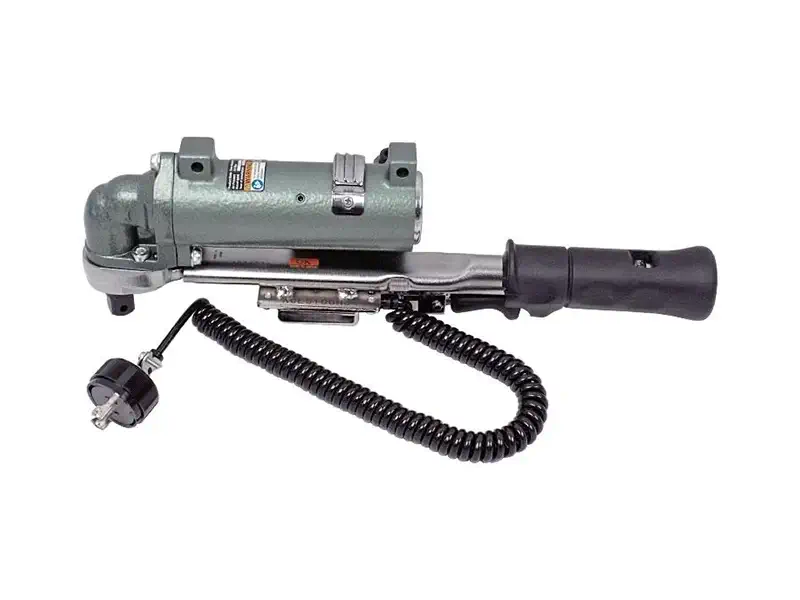

ACLS100N3

Specifications
Model ACLS100N3
Torque Range (Min - Max) 20-100 nm
Torque Range (Grade) 1 knm
Max.Provisional Tightening Torque 17.5 Nm
Free Speed 900 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 6 mm
Overall Length 334 mm
Square Drive 12.7 mm
Weight 2.2 kg

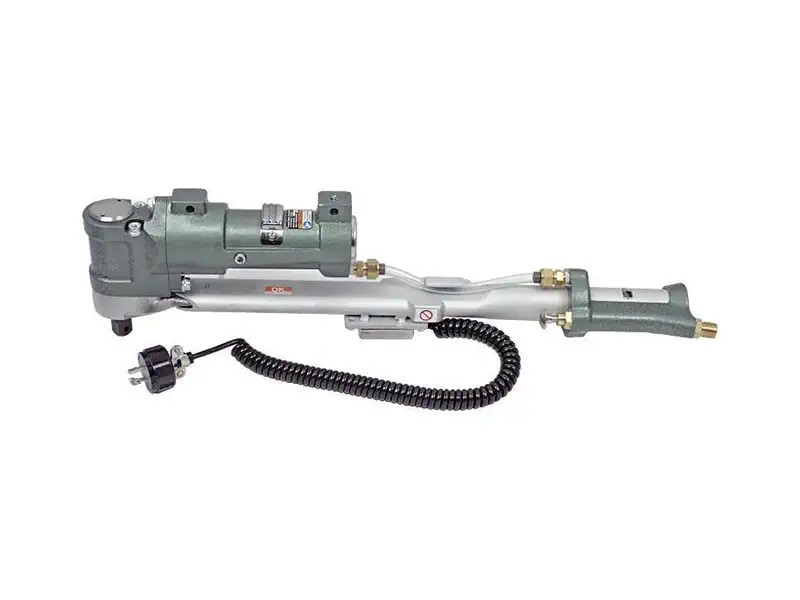

ACLS180N3

Specifications
Model ACLS180N3
Torque Range (Min - Max) 40-180 nm
Torque Range (Grade) 2 knm
Max.Provisional Tightening Torque 19 Nm
Free Speed 800 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 6 mm
Overall Length 488 mm
Square Drive 12.7 mm
Weight 3.5 kg

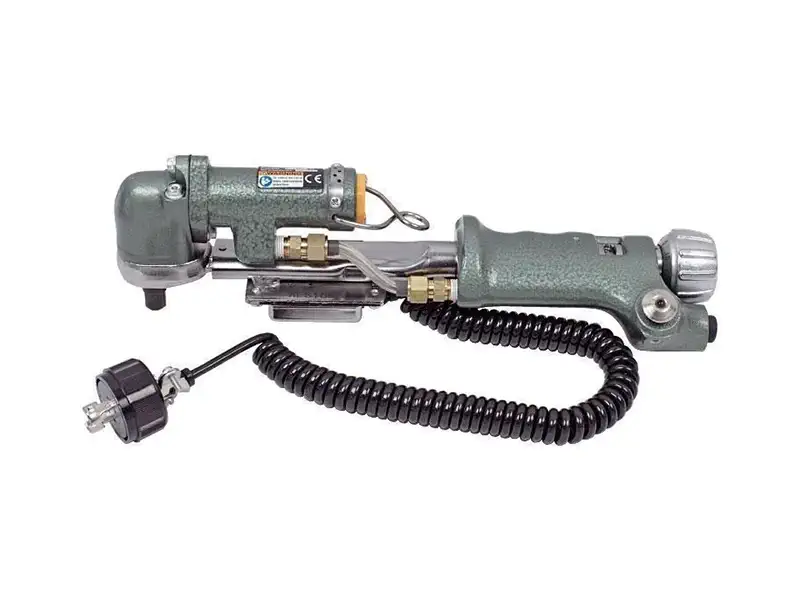

ALS10N3

Specifications
Model ALS10N3
Torque Range (Min - Max) 03-10 nm
Torque Range (Grade) 0.1 knm
Max.Provisional Tightening Torque 1.8 Nm
Free Speed 750 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 5 mm
Overall Length 277 mm
Square Drive 9.5 mm
Weight 1.2 kg

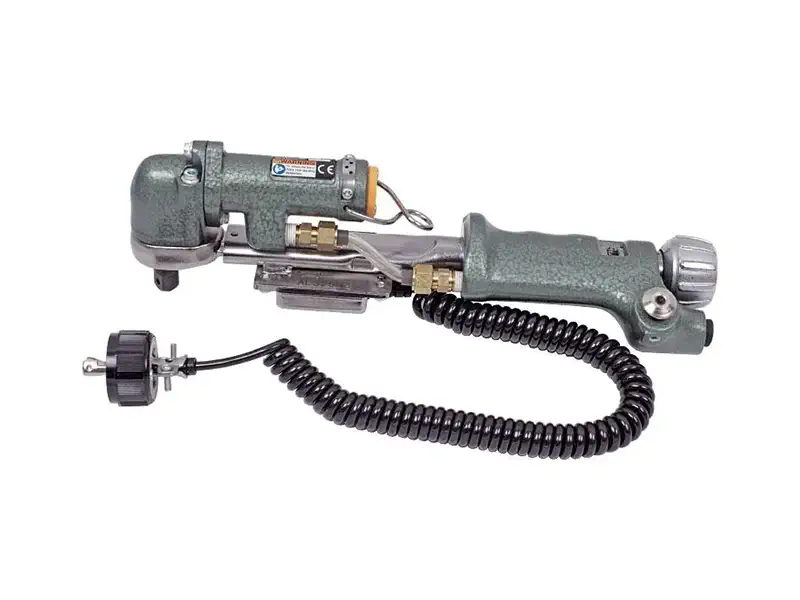

ALS25N3

Specifications
Model ALS25N3
Torque Range (Min - Max) 05-25 nm
Torque Range (Grade) 0.25 knm
Max.Provisional Tightening Torque 1.8 Nm
Free Speed 750 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 5 mm
Overall Length 277 mm
Square Drive 9.5 mm
Weight 1.2 kg

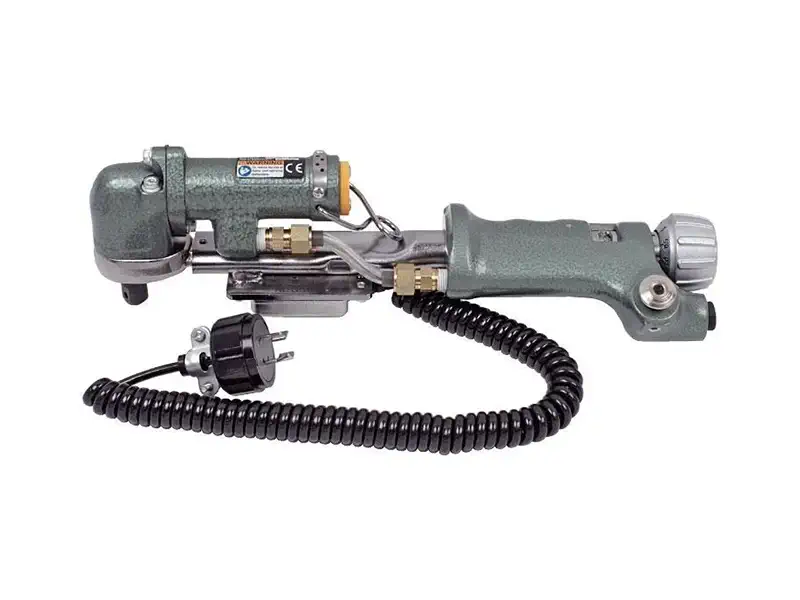

ALS50N3

Specifications
Model ALS50N3
Torque Range (Min - Max) 10-50 nm
Torque Range (Grade) 0.5 knm
Max.Provisional Tightening Torque 1.8 Nm
Free Speed 750 rpm
Air Pressure 0.6 mpa
Hose In Dia. Ø 5 mm
Overall Length 277 mm
Square Drive 9.5 mm
Weight 1.2 kg
