| Specifications | |
|---|---|

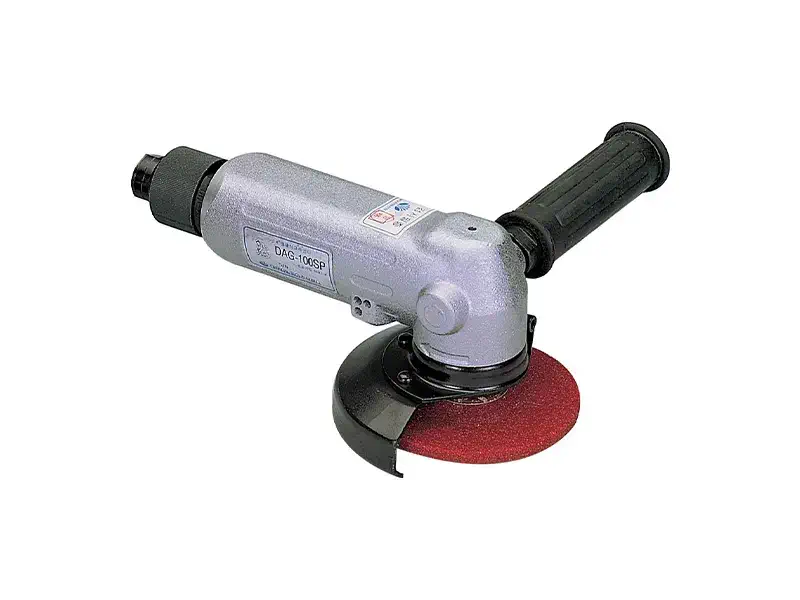

| Model | DAG - 100SP |
| Capacity (wheel size ) | 4 in ( 100mm ) |
| Max Free Speed | 11000 rpm |
| Max Power | 0.7ps |
| Length | 8.2 in ( 210 mm ) |
| Weight ( without wheel ) | 3.4 lb ( 1.55 kg ) |
| Thread Air Inlet | PT 1/4 |
| Average Air consumption | 22 ft³/ min ( 0.6 m³ / min ) |
| Recommended Air pressure | 85psi ( 6kg / cm² ) |
| Specifications | |
|---|---|

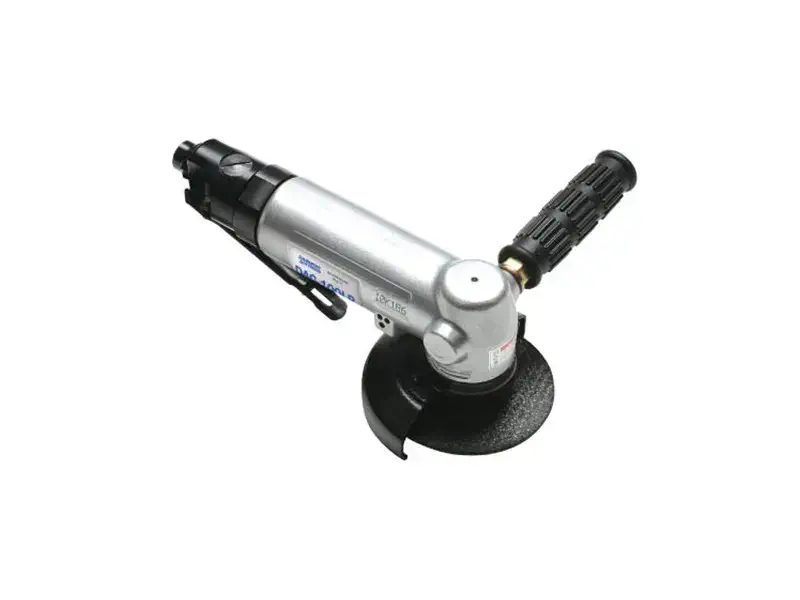

| Model | DAG - 100LP |
| Capacity (wheel size ) | 4 in ( 100mm ) |
| Max Free Speed | 11000 rpm |
| Max Power | 0.7ps |
| Length | 8.8 in ( 225 mm ) |
| Weight ( without wheel ) | 4.23 lb ( 1.92kg ) |
| Thread Air Inlet | PT 1/4 |
| Average Air consumption | 22 ft³/ min ( 0.6 m³ / min ) |
| Recommended Air pressure | 85psi ( 6kg / cm² ) |
| Specifications | |
|---|---|
| Model | DAG-70G-1 |
| Capacity (wheel size ) | 7 in ( 180mm ) |
| Max Free Speed | 7600 rpm |
| Max Power | 1.3 ps |
| Length | 9.48 in ( 241 mm ) |
| Weight ( without wheel ) | 5.52 lb ( 2.37kg ) |
| Thread Air Inlet | PT 3/8 |
| Average Air consumption | 33 ft³/ min ( 0.9 m³ / min ) |
| Recommended Air pressure | 85psi ( 6kg / cm² ) |
